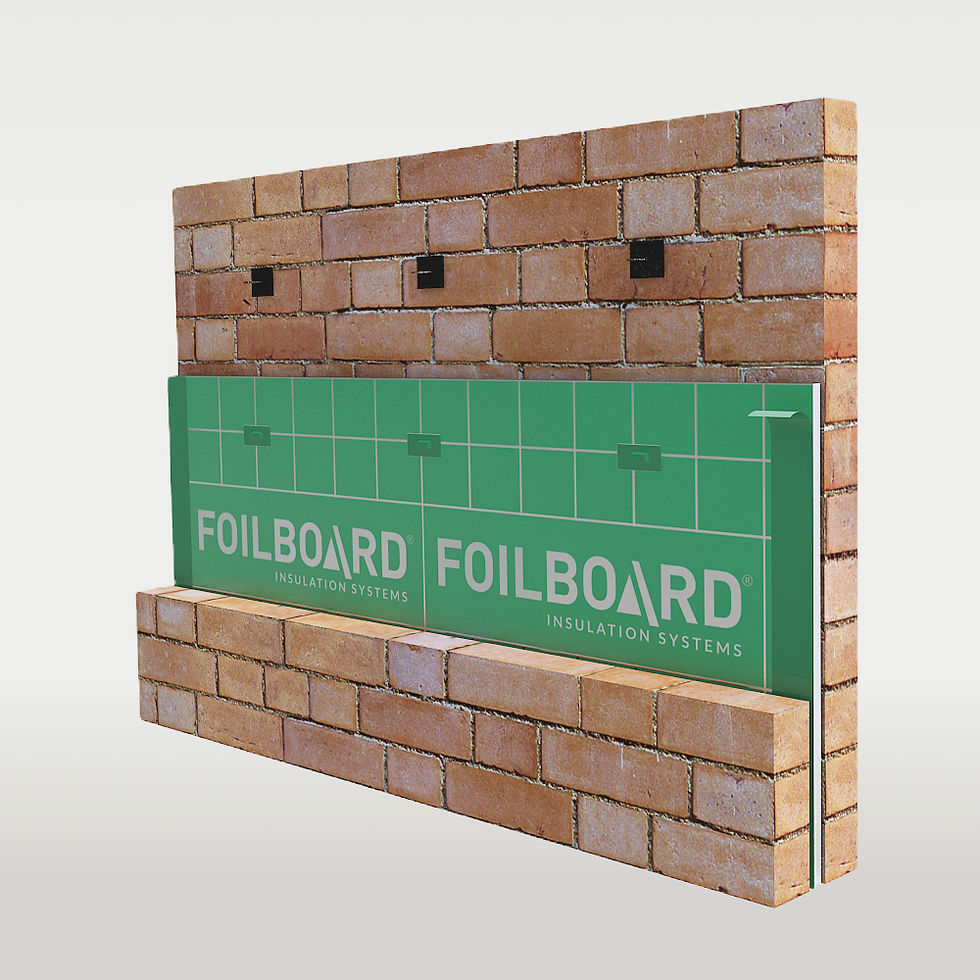

Double brick construction provides durability and thermal mass, but without insulation, it can allow unwanted heat transfer. Foilboard Insulation is designed for double brick applications, creating a continuous thermal barrier within the cavity to improve energy efficiency. By reflecting radiant heat, Foilboard helps keep interiors cooler in summer and warmer in winter while preventing moisture absorption and thermal bridging.

INSTALLATION ACCESSORIES

**Foilboard Insulation Panel Dimension: 240mm x 1200mm (2.88m2)**

Total System R Values Double Brick Cavity

FOILBOARD PANEL	CAVITY WIDTH	HEAT FLOW OUT WINTER	HEAT FLOW IN SUMMER
GREEN 50	90mm	Rt2.9	Rt2.8
GREEN 30	70mm	Rt2.5	Rt2.4
GREEN 25	65mm	Rt2.4	Rt2.3
GREEN 20	60mm	Rt2.3	Rt2.2
GREEN 15	50mm	Rt2.0	Rt2.0
GREEN 10	50mm	Rt1.6	Rt1.6

System Description: GREEN 15-50 System Description: 110mm Brickwork (k=0.78), Foilboard placed centre of cavity, Reflective Airspace each side of the Foilboard, 110mm Brickwork (k=0.78) GREEN 10 System Description: 110mm Brickwork (k=0.78), 35mm Reflective airspace, 10mm Foilboard, 5mm Reflective Airspace, 110mm Brickwork (k=0.78)

Calculated per AS/NZS 4859 Part 1 & 2:2018

If elements of construction vary from that described, this may produce a different thermal resistance result.

If the R-Value required for your project is not listed in the table above, please complete the Wall R-Value Request Form and submit the necessary project details.

Wall R-Value Request

DISCLAIMER All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy thereof is not guaranteed. Users assume all risk and liability resulting from the use of the product and must confirm the suitability thereof by their own calculations. Conditions of Sale contain a limited warranty against manufacturing defects. Where applicable, Foilboard GREEN should be installed per the National Construction Code (NCC), state building legislation and/or a performance solution.

Added Insulation R Values Double Brick

FOILBOARD PANEL	CAVITY WIDTH	ADDED INSULATION R VALUE WINTER	ADDED INSULATION R VALUE SUMMER
GREEN 50	90mm	R2.5	R2.4
GREEN 30	70mm	R2.1	R2.0
GREEN 25	65mm	R2.0	R1.9
GREEN 20	60mm	R1.8	R1.8
GREEN 15	50mm	R1.6	R1.5
GREEN 10	50mm	R1.2	R1.1

System Description: GREEN 15-50 System Description: 110mm Brickwork (k=0.78), Foilboard placed centre of cavity, Reflective Airspace each side of the Foilboard, 110mm Brickwork (k=0.78) GREEN 10 System Description: 110mm Brickwork (k=0.78), 35mm Reflective airspace, 10mm Foilboard, 5mm Reflective Airspace, 110mm Brickwork (k=0.78)

Calculated per AS/NZS 4859 Part 1 & 2:2018 Added Insulation R Value includes the material insulation R Value and the R Values of the associated reflective airspaces within the insulation system pathway.

If elements of construction vary from that described, this may produce a different thermal resistance result.

If the R-Value required for your project is not listed in the table above, please complete the Wall R-Value Request Form and submit the necessary project details.

Wall R-Value Request

DISCLAIMER All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy thereof is not guaranteed. Users assume all risk and liability resulting from the use of the product and must confirm the suitability thereof by their own calculations. Conditions of Sale contain a limited warranty against manufacturing defects. Where applicable, Foilboard GREEN should be installed per the National Construction Code (NCC), state building legislation and/or a performance solution.
